EQUESTRIAN PACKAGE
$531/MO
OR Cash Discounts of $3,000*
Apply For Financing BUY ONLINE

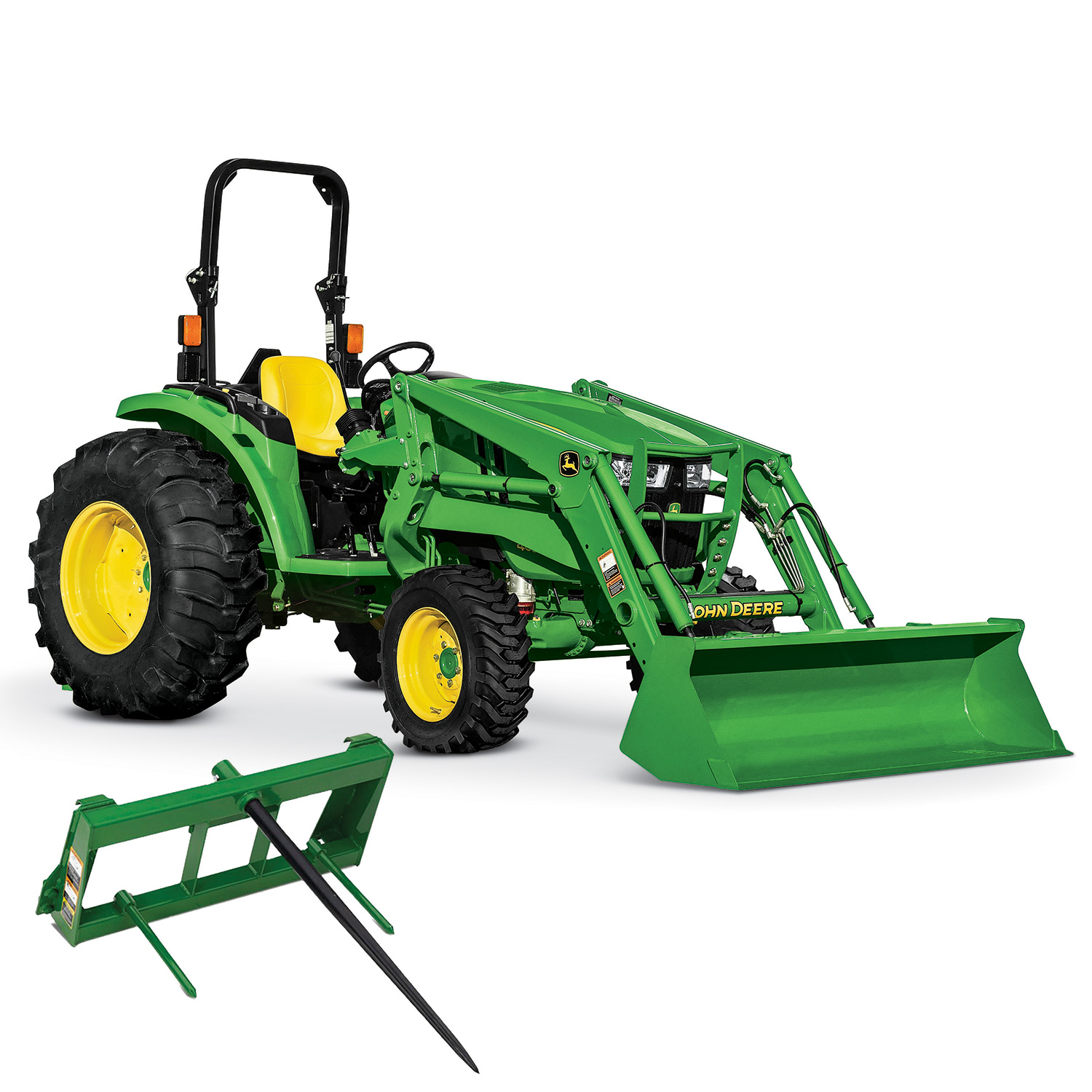

Package Includes:
  • 4044M Compact Tractor
  • 400E Loader + Bucket
  • AB11E Bale Spear
  • 10-Year AgriVision Equipment PowerTrain Warranty
Contact Us View 4 series Packages



Need a different attachment than we have shown? We can customize all packages to meet your needs.
Just click our "BUY ONLINE" button to the right to create a package for your lifestyle.
Product Details Specifications Photos

2023 John Deere 4044M Base

  • Year 2023
  • Manufacturer John Deere
  • Model Name 4044M
  • Trim Name Base
  • Generic Type (Primary) Compact
  • Engine Manufacturer Yanmar 4TNV88C-MJT
  • Engine Type Diesel
  • Rated Engine Speed 2600 rpm
  • Engine Power 31.7 kW (43.1 hp) PS at 2600 rpm
  • Displacement Cylinders: 4 / 2.189 L (4 / 133.5 cu in.)
  • Injection Pump Type In-line with electric shutoff
  • Aspiration Natural
  • Bore 88 mm (3.46 in.)
  • Stroke 90 mm (3.54 in.)
  • Compression Ratio 19.1:1
  • Lubrication Pressurized
  • Cooling System Liquid
  • Air Cleaner Dual element
  • Engine Torque at rated speed: 116 Nm 885.6 lb-ft)
  • Final Drive Planetary

2023 John Deere 4044M

Features

    • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads

    • Excellent serviceability reduces operational costs and improves productivity

    • Built-in safety features for operator peace of mind

    • Optional iMatch™ Quick-Hitch allows for easy implement hookup

    • Operator station is comfortable and convenient

    • Maximize productivity with an eHydro™ transmission

    • Attractive styling provides improved visibility and serviceability

    • PowrReverser™ transmission allows for clutchless direction changes


400E Loader + Bucket

Features

    • Compatible with 4M and 4R Series Tractors

    • Rigid mounted with parking kit available

    • Easy maintenance points keep you on the job

    • 1,760 pounds (800 kg) lift capacity



AB11E Bale Spear

Features

    • Quick and easy attachment

    • Replaceable tines for extended implement lift

    • Rugged, tubular frame enhances durability and efficiency

Engine

Engine Manufacturer Yanmar 4TNV88C-MJT
Engine Type Diesel
Rated Engine Speed 2600 rpm
Engine Power 31.7 kW (43.1 hp) PS at 2600 rpm
Displacement Cylinders: 4 / 2.189 L (4 / 133.5 cu in.)
Injection Pump Type In-line with electric shutoff
Aspiration Natural
Bore 88 mm (3.46 in.)
Stroke 90 mm (3.54 in.)
Compression Ratio 19.1:1
Lubrication Pressurized
Cooling System Liquid
Air Cleaner Dual element
Engine Torque at rated speed: 116 Nm 885.6 lb-ft)
Final Drive Planetary

Fuel System

Fuel Type High pressure common rail direct injection

PTO

PTO Power, Rated Engine Speed 25.7 kW (34.5 hp)
Standard PTO Independent 540 rpm at 2600 rpm

Drivetrain

Transmission Standard transmission; forward/reverse: 12/12 PowrReverser transmission (PRT) | Optional transmission; forward/reverse: 3/3 Hydrostatic transmission (HST) | Transmission gear ranges: 12F/12R PRT Infinitely-variable, 3 range
Steering Power steering

Hydraulics

Hydraulic Type Open center
Hydraulic Flow Pump rated output: 60.2 L/min (15.9 gpm)
Pump Type High pressure common rail direct injection

Electric

Battery 770 CCA
Alternator 12-V: 75 amp
Starter Size: 2 kW (2.68 hp)

Wheels & Tires

Tires, Front Specification Farm - 8-16 | Turf - 27x10.5-15 or 27x12LL-15 | R4 - 10-16.5
Tires, Rear Specification Farm - 13.6-28 | Turf - 44x18-20 or 22.5LL-16.1 | R4 - 16.9Lx24
Axle Capacity, Front 1600 kg (3528 lb)
Axle Capacity, Rear 2400 kg (5292 lb)

Dimensions

Wheelbase 185.5 cm (73 in.)
Dimensions Clutch disk diameter wet clutch: 129 mm 5.08 in. | Front axle clearance: 39.5 cm (15.6 in.) | Turning radius with brakes: 2.8 m (9.19 ft) | Turning radius without brakes: 3.0 m (9.84 ft) | Front tread range: 148.1 cm 858.3 in.) | Rear tread spacing: 137.2 cm (54 in.)

Capacities

Fuel Capacity 50 L (13.8 U.S. gal.)
Hitch Lift Capacity 3-Point category 1 | 24-in. behind link arms: 1135 kg (2500 lb)
Oil capacity Crankcase with filter: 5.3 L (1.4 qt)
Hydraulic Capacity 44 L (12 gal.)

Weights

Weight Approximate shipping (open-station; cab): Open operator station (OOS) - 1710 kg (3770 lb) | Cab - 2120 kg (4675 lb)

Features

Features Emissions compliance: Final Tier 4 | Number of cylinders: four | Cylinder liners: Cast-in-block | Differential lock | Draft control sensing: Position control | PTO Control: Position | PTO Clutch: Wet disk | Engagement method: Electro-hydraulic | Rollover protective structure: Type Foldable | Platform - flat/straddle: flat | Gear shift location - console/floor: Left-hand Side

Product Photography

*Compact Utility Tractor packages expire 10/31/25. Subject to approved credit with John Deere Financial, monthly payment calculated with $0 down and 1.9% APR for 84-month financing on John Deere 4 Series Compact Tractors. Price does not include tax. Some restrictions apply. See AgriVision Equipment for details. Only valid on current inventory settled by 10/31/25. Pricing and availability are limited to dealer inventory.
